The Chubby Gorilla Aviator CR 510R Cartridge Container is packaging built for one job: holding a filled 510-thread cartridge and showing whether the pack has been opened. Supplied by Simply Green in cases of 100. It takes a cartridge up to 65 mm long, stands 85 mm closed on a 21 mm body, and screws into a child-resistant closure with an integrated 510-thread holder.
About the Aviator CR 510R Cartridge Container 65mm

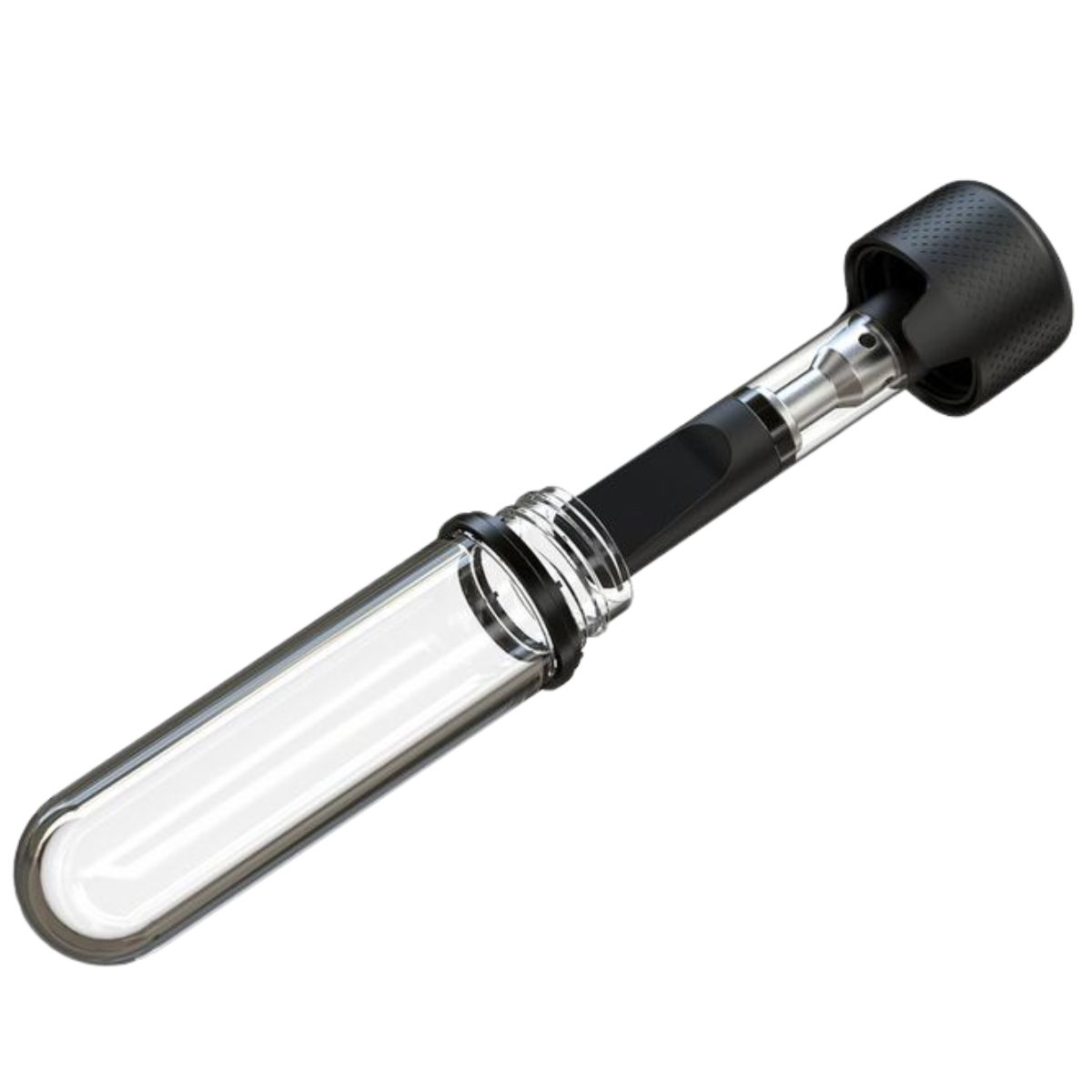

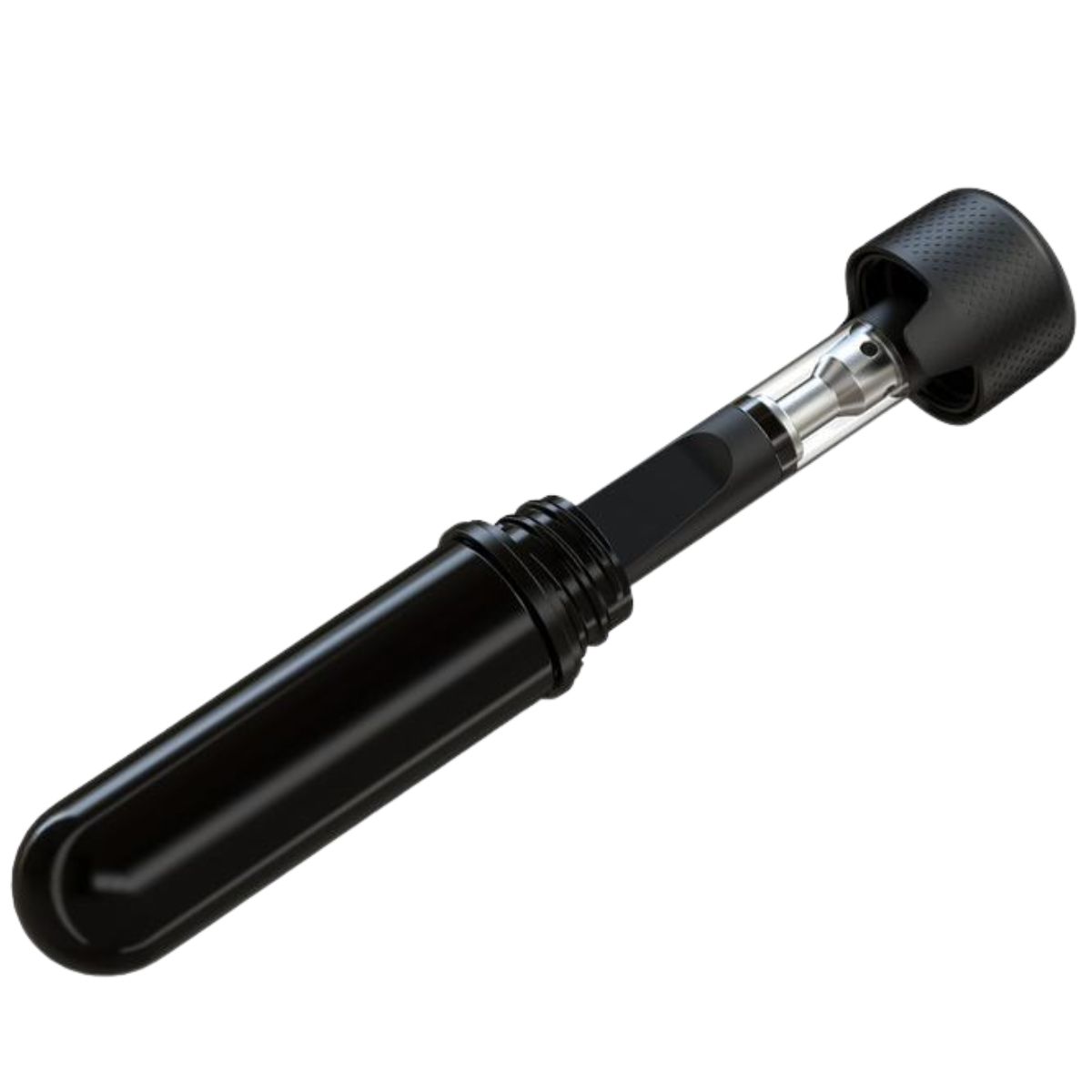

The 510 thread is built into the closure itself, so the cartridge screws into the cap rather than moving loose inside the tube. Chubby Gorilla describes it as holding the cartridge in place in a variety of orientations, which prevents movement and damage in transit. Assembled, the cartridge stands in the base and the clear body goes over it, so the product is visible without being handled.
The closure opens on a push-and-turn and sets its tamper-evident band as it closes.
- Universal 510-thread holder: integrated into the closure
- Child-resistant closure: push-and-turn on a T18 neck
- Fastened tamper-evident band: stays latched to the neck
- 360 Micro-Grip Diamond surface: grip right around the closure
Best for
A filled 510-thread cartridge, up to 65 mm long. The container is supplied empty.

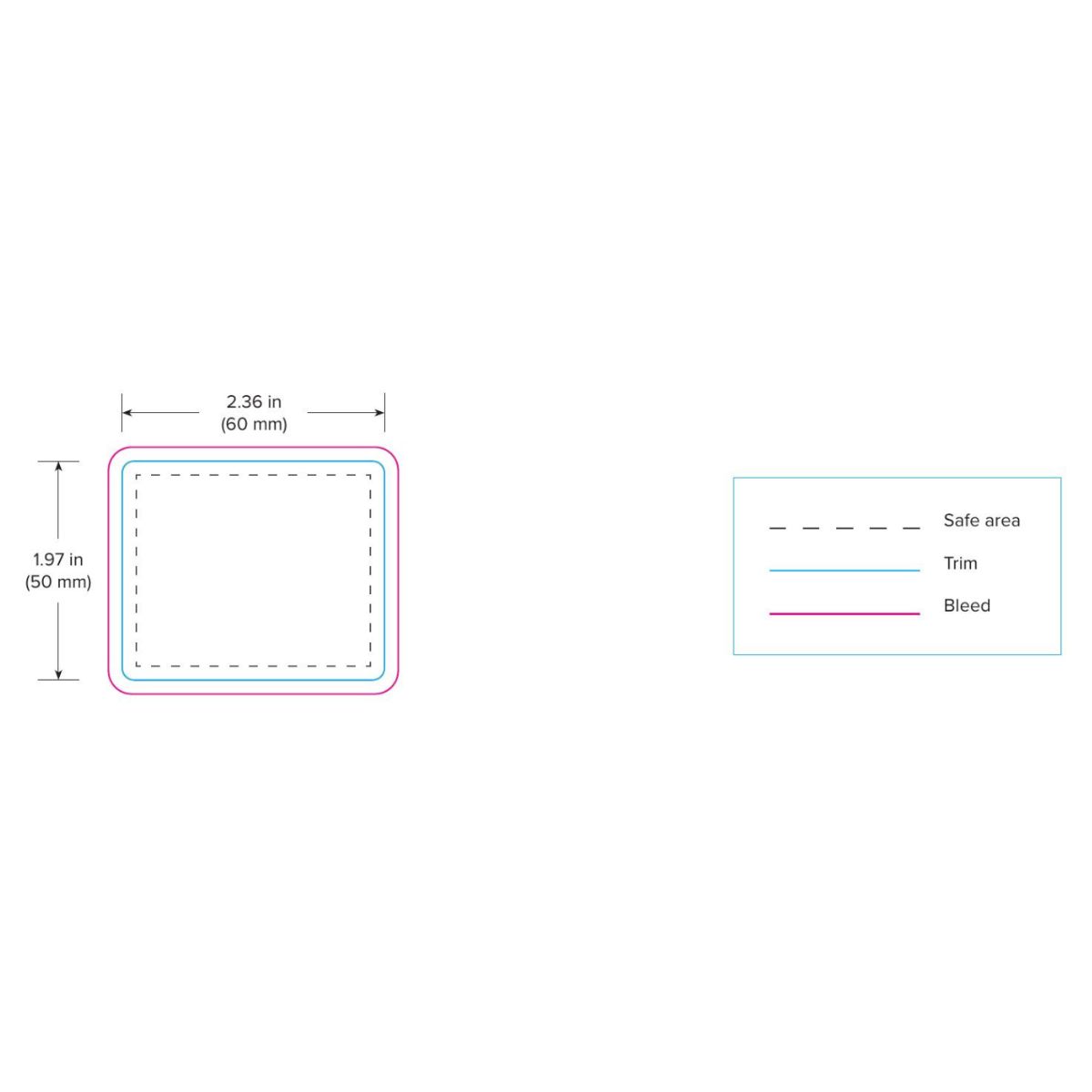

The label panel is 50 by 60 mm, portrait rather than a wrap.
Specifications
| Capacity | Holds a 510-thread cartridge up to 65 mm long |
|---|---|
| Closure Type | Child-resistant push-and-turn screw closure (All-In-One SmartCap), T18 neck, with integrated universal 510-thread holder |
| Tamper Evidence | Fastened tamper-evident band, latches to the neck |

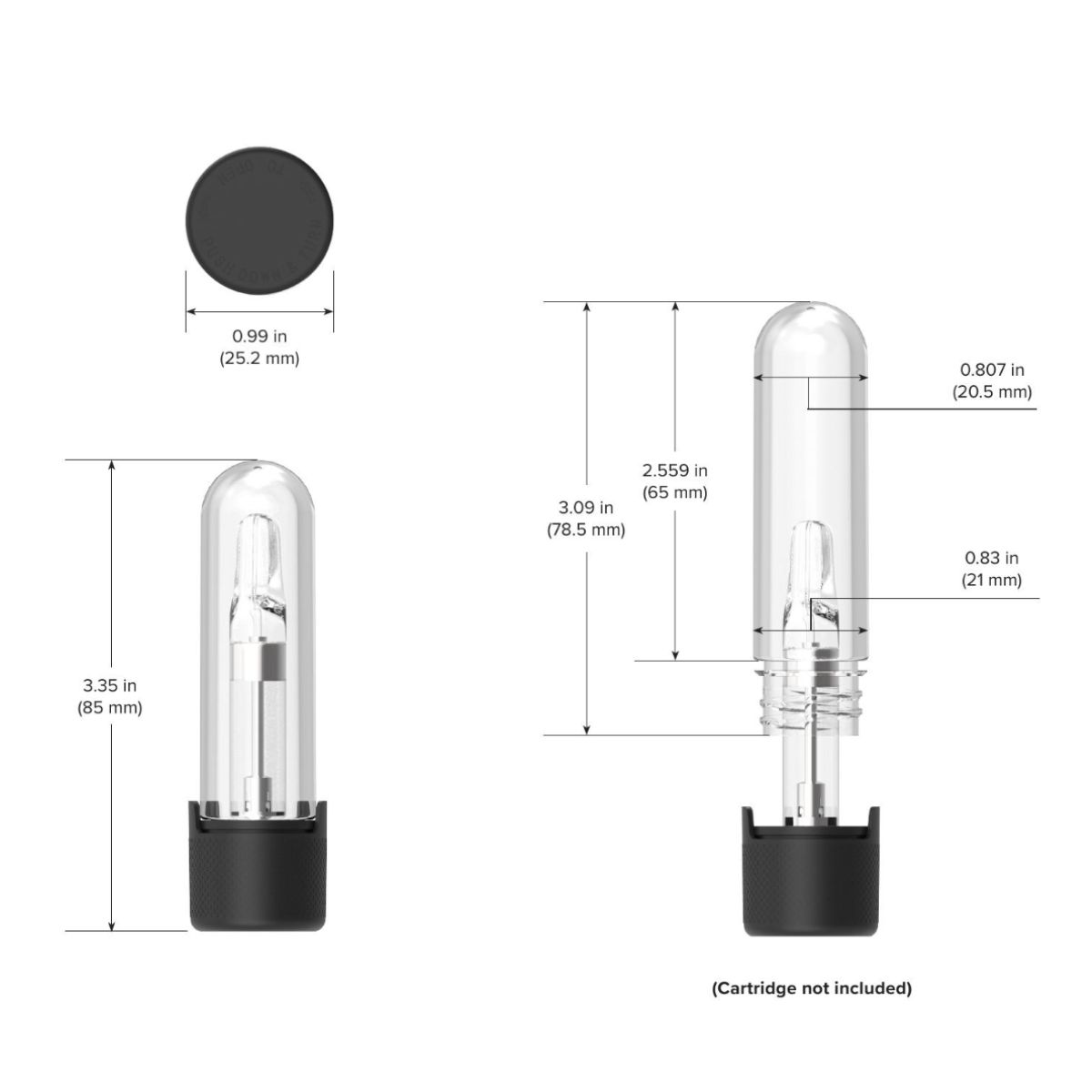

| Dimensions | 85.0 mm high closed, 21.0 mm body diameter, 25.2 mm closure; label area 50 x 60 mm |

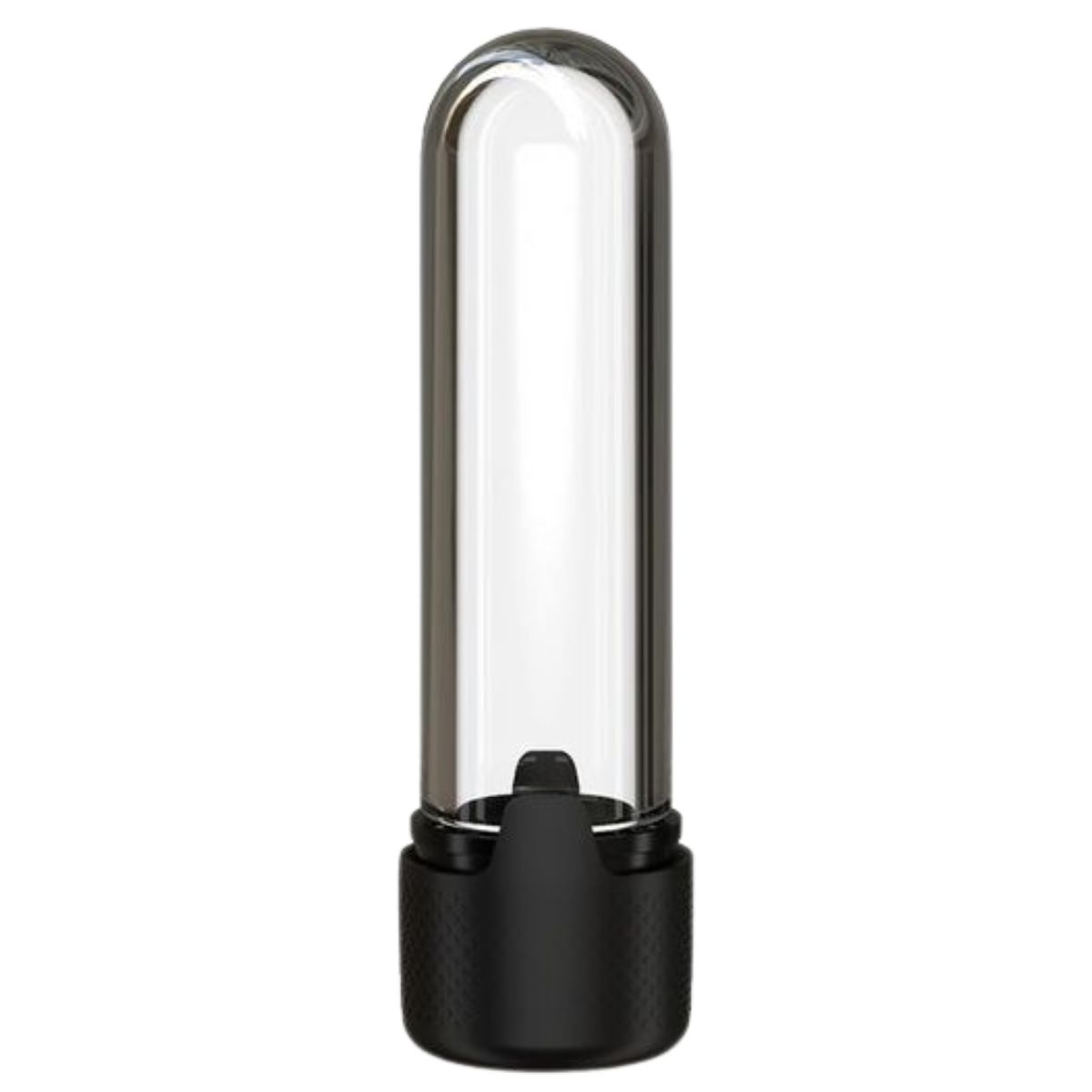

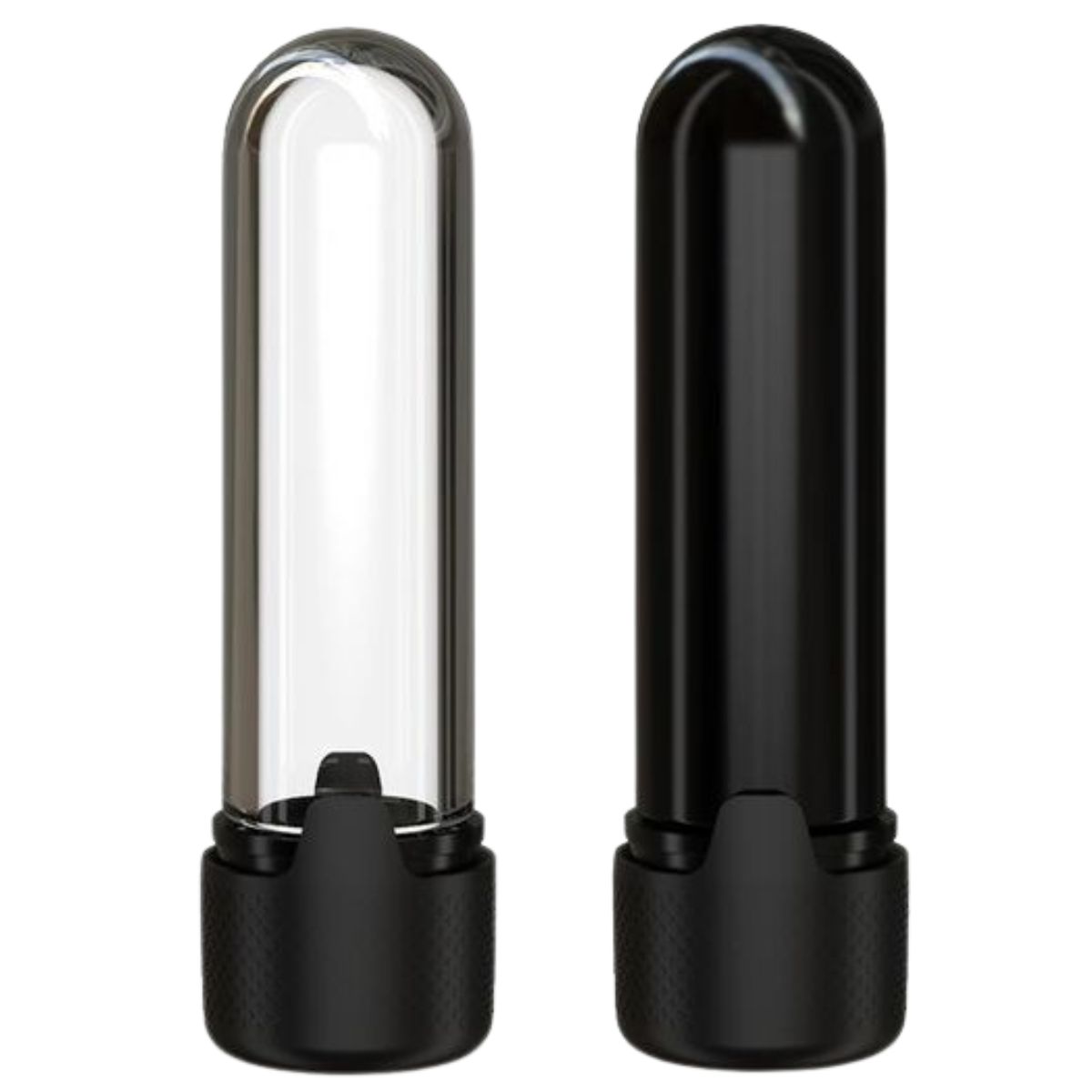

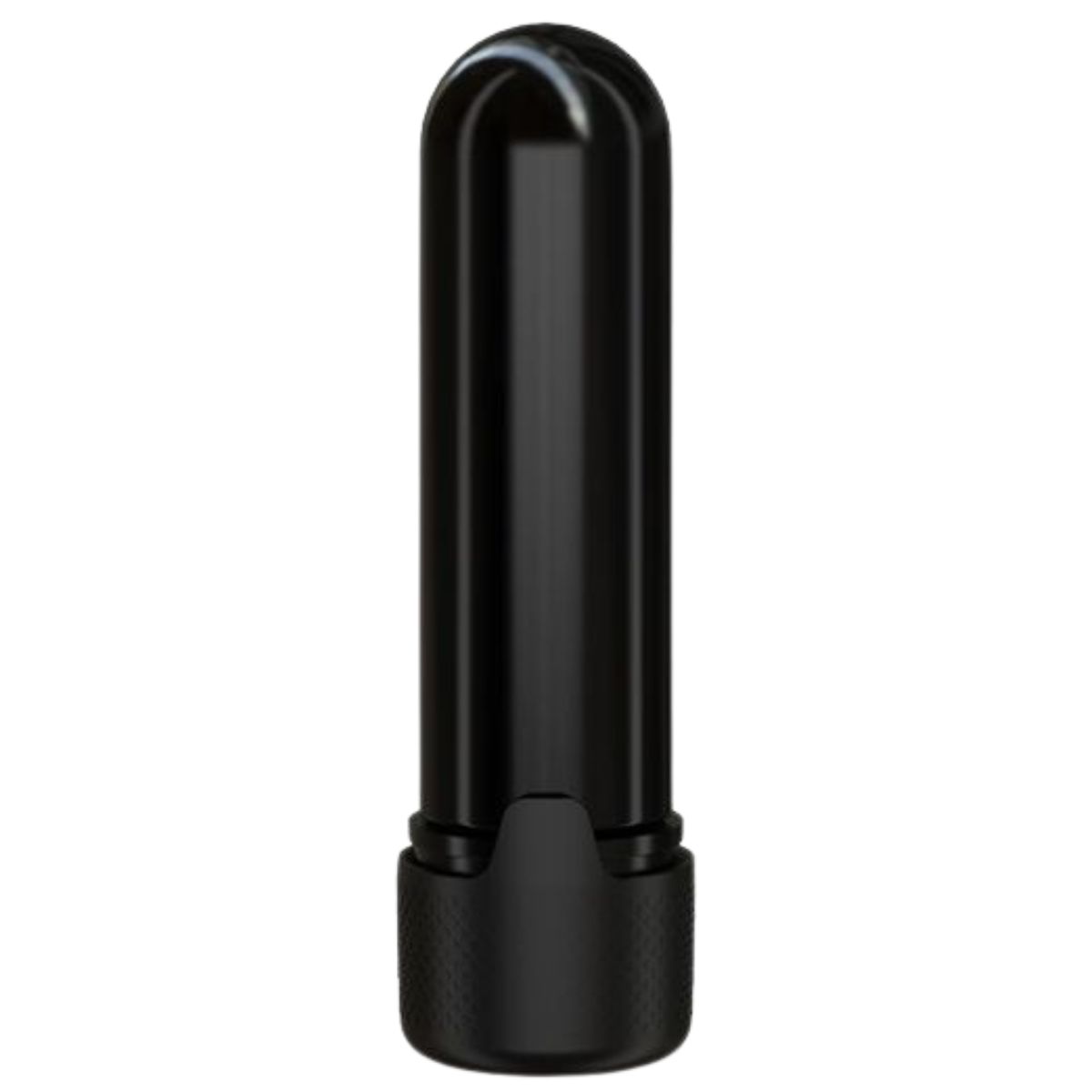

| Colors Available | Clear with black closure, all black |
| Units per Masterpack | 100 |
| Customization Options | Direct printing, label application, closure and body finishes |
Compliance and certification
Chubby Gorilla states manufacture under ISO 9001, ISO 14001 and ISO 15378, the GMP standard for primary packaging of medicinal products, with GMP 110, 210 and 211.
Cartridge packaging is often regulated on a child-resistance basis. Confirm your own market’s requirement before specifying.
Wholesale and customization
Cases of 100. Supplied empty: cartridges are not included, and we stock empty 510 cartridges separately so both can arrive on one order.
Available clear with black closure, all black. Printing and label application are possible on this range, subject to the format, and the label panel here is portrait rather than a wrap. To order packaging and cartridges together, or to ask what can be done on a branded run, speak with your account manager or contact us.
